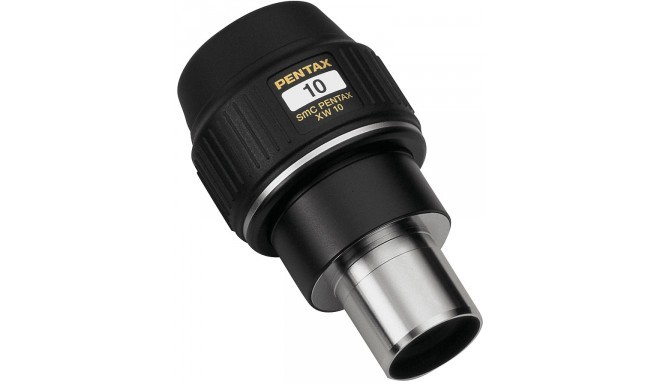

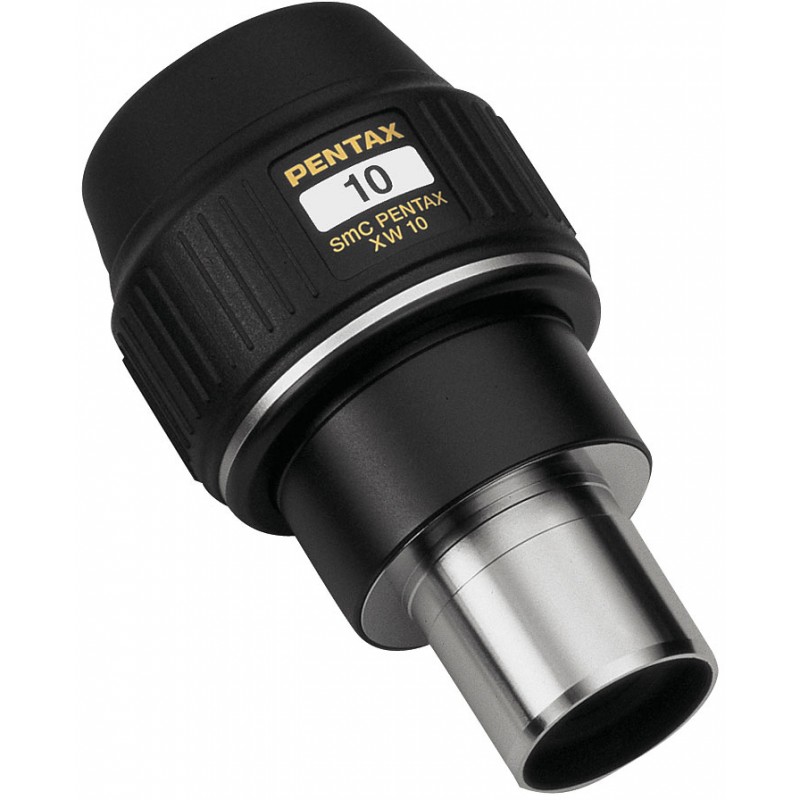

Pentax eyepiece smc XW 10mm (70514)
Code: 38544
EAN: 0027075075221
Manufacturer code: 70514
Main info
- Eyepiece for Pentax spotting scopes
- Made of high-grade lanthanum glass
- Multi-coated surfaces assure high performance
- Exceptional apparent field of view: 70°
- Durable waterproof design
Product has been archived
Exceptional performance, wide-angle eyepiece with a long 20mm eye relief and waterproof body
Designed for use with Pentax spotting scopes and with astronomical telescopes with appropriate 31.7 mm focusers. It has weatherproof construction for greater durability. The smc Pentax 10 mm features high-grade Lanthanum glass with high refraction and low dispersion. In addition, original multi-coating and special coating on the laminated surfaces effectively reduce flare and ghosting, achieving extremely high lighttransmission performance.
Compatible with the Pentax PF-100ED, PF-80EDA, PF-80ED, PF-65EDAII and PF-65EDII spotting scopes.
PF-65EDII / PF-65EDAII
PF-80ED
PF-80EDA
PF-100ED
Designed for use with Pentax spotting scopes and with astronomical telescopes with appropriate 31.7 mm focusers. It has weatherproof construction for greater durability. The smc Pentax 10 mm features high-grade Lanthanum glass with high refraction and low dispersion. In addition, original multi-coating and special coating on the laminated surfaces effectively reduce flare and ghosting, achieving extremely high lighttransmission performance.
Compatible with the Pentax PF-100ED, PF-80EDA, PF-80ED, PF-65EDAII and PF-65EDII spotting scopes.
PF-65EDII / PF-65EDAII
- Magnification: 39×
- Real field of view: 1.8°
- Apparent field of view: 70°
- Field of view at 1000m: 31 m
- Exit pupil: 1.7 mm
- Eye relief: 20 mm
- Relative brightness: 2.9
PF-80ED
- Magnification: 50×
- Real field of view: 1.4°
- Apparent field of view: 70°
- Field of view at 1000m: 24 m
- Exit pupil: 1.6 mm
- Eye relief: 20 mm
- Relative brightness: 2.6
PF-80EDA
- Magnification: 52×
- Real field of view: 1.4°
- Apparent field of view: 70°
- Field of view at 1000m: 24 m
- Exit pupil: 1.6 mm
- Eye relief: 20 mm
- Relative brightness: 2.6
PF-100ED
- Magnification: 62×
- Real field of view: 1.5°
- Apparent field of view: 70°
- Field of view at 1000m: 19 m
- Exit pupil: 1.6 mm
- Eye relief: 20 mm
- Relative brightness: 2.6
Specifications
Focal length
10 mm
Eyepiece
7 elements in 6 groups
Real field of view
70°
Eye relief
20 mm
Eyepiece attachment diameter
31.7 mm
Diameter
61 mm
Length
110 mm
Weight
390 g
Product codes
EAN
0027075075221
Manufacturer code
70514
