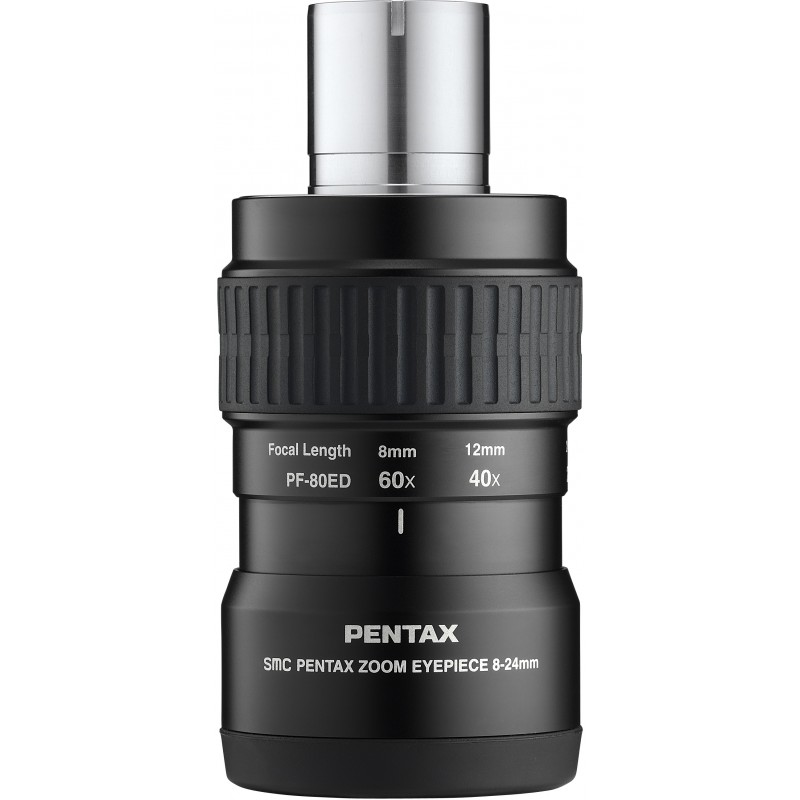

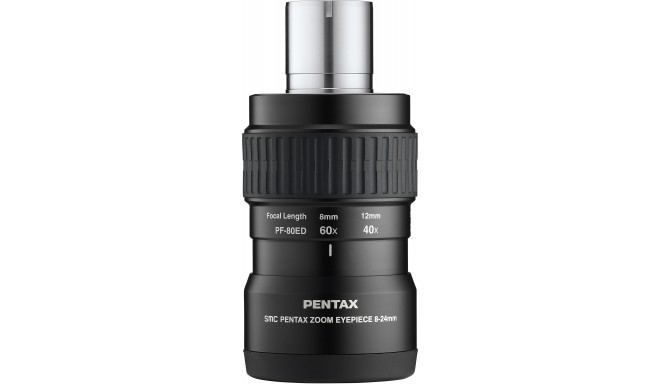

Pentax eyepiece Zoom 8-24mm (70509)
Code: 19368
EAN: 027075048737
Manufacturer code: 70509
Main info
- Eyepiece for Pentax spotting scopes
- Made of high-grade lanthanum glass
- Multi-coated surfaces assure high performance
- Provides 20-60× magnification
- Durable waterproof design
Product has been archived
The smc Zoom eyepiece features a magnification range of 20-60X, an apparent field of view of 38 to 60 degrees, and an eye relief of 20mm. Like all PENTAX eyepieces, it is renowned for its outstanding image reproduction. With its JIS Class 6 rated waterproof and fog proof construction, this Zoom eyepiece is ideal for use with astronomical telescopes.
Compatible with the PF-65 and PF-65 ED II series spotting scopes, PF-80 series spotting scopes and PF-100 series spotting scopes.
Compatible with the PF-65 and PF-65 ED II series spotting scopes, PF-80 series spotting scopes and PF-100 series spotting scopes.
Specifications
Focal length
8 – 24 mm
Eyepiece
6 elements in 4 groups
Real field of view
38° – 60°
Eye relief
20 mm
Eyepiece attachment diameter
31.7 mm
Diameter
69 mm
Length
144 mm
Weight
550 g
Product codes
EAN
027075048737
Manufacturer code
70509
