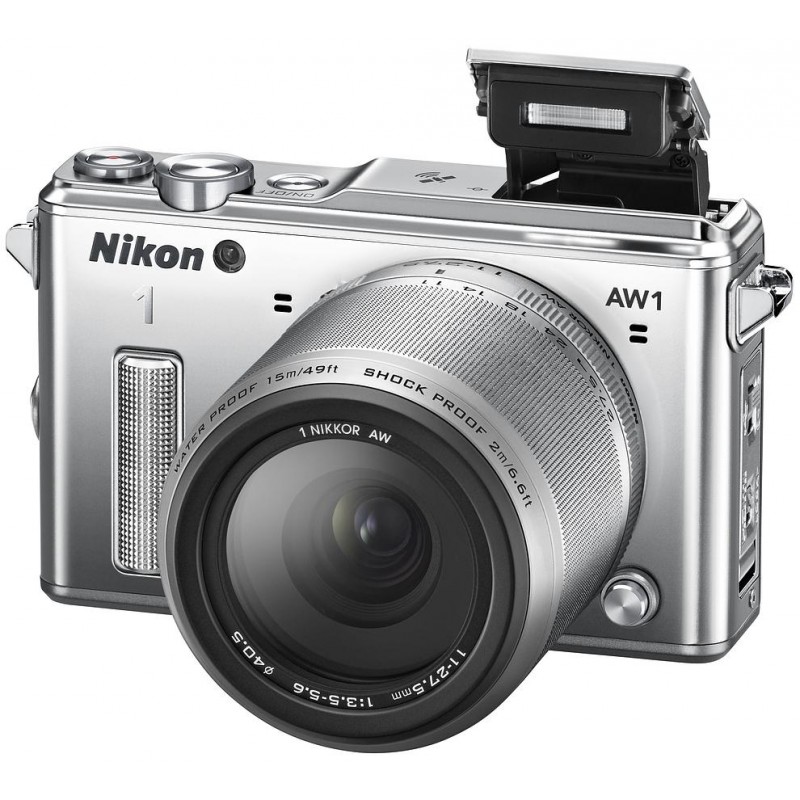

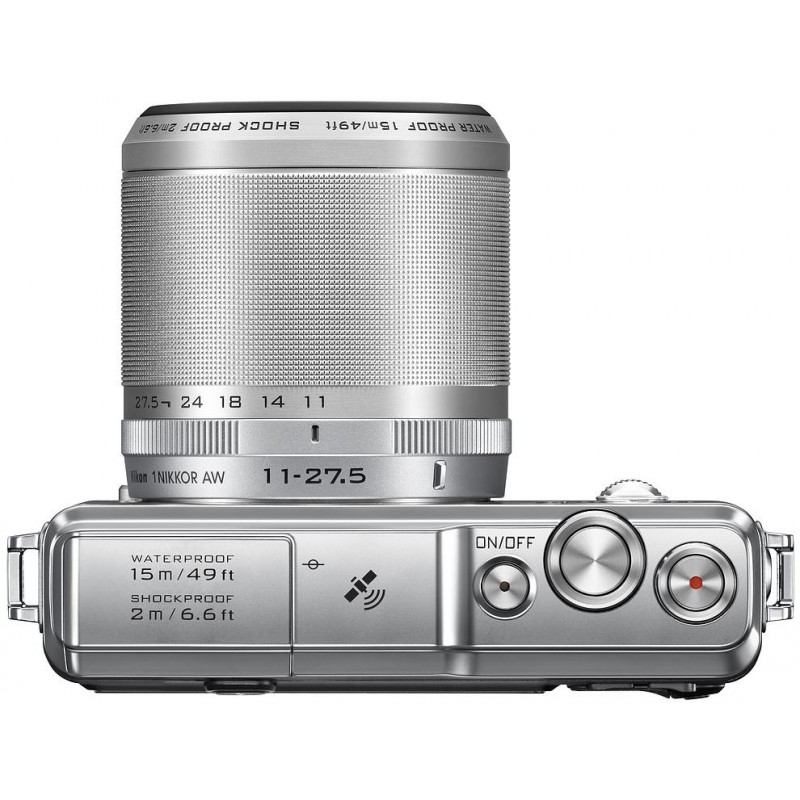

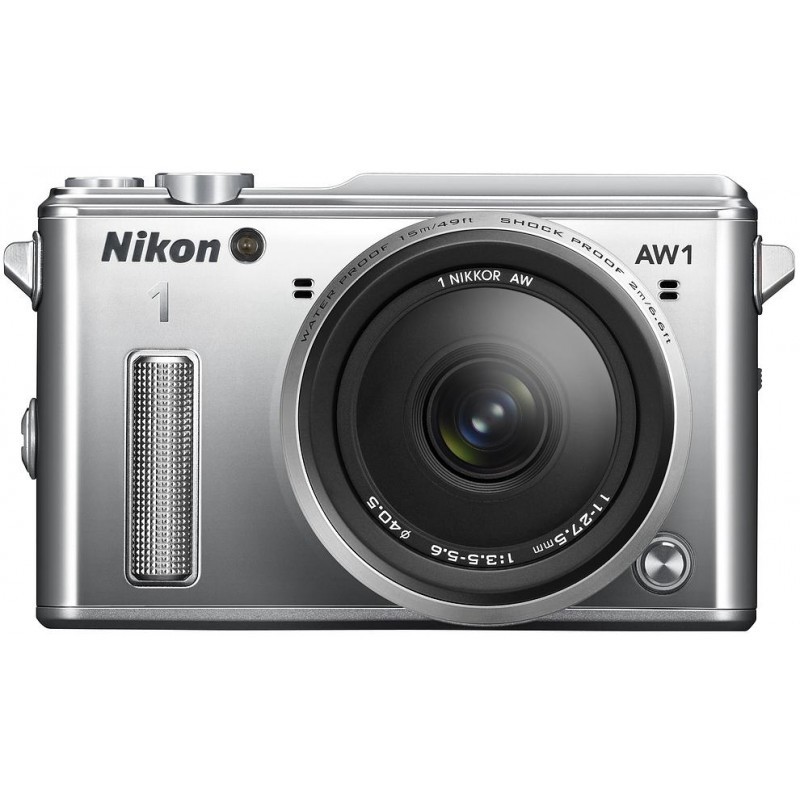

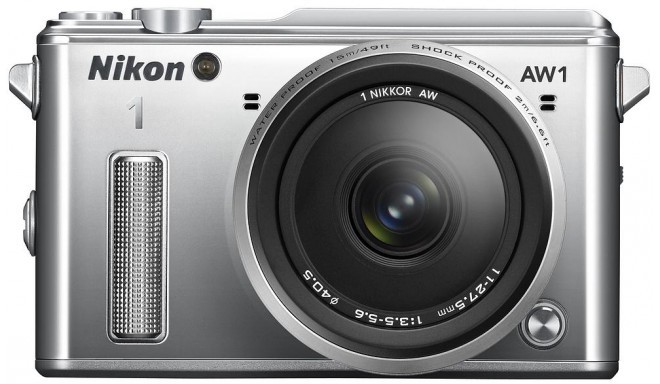

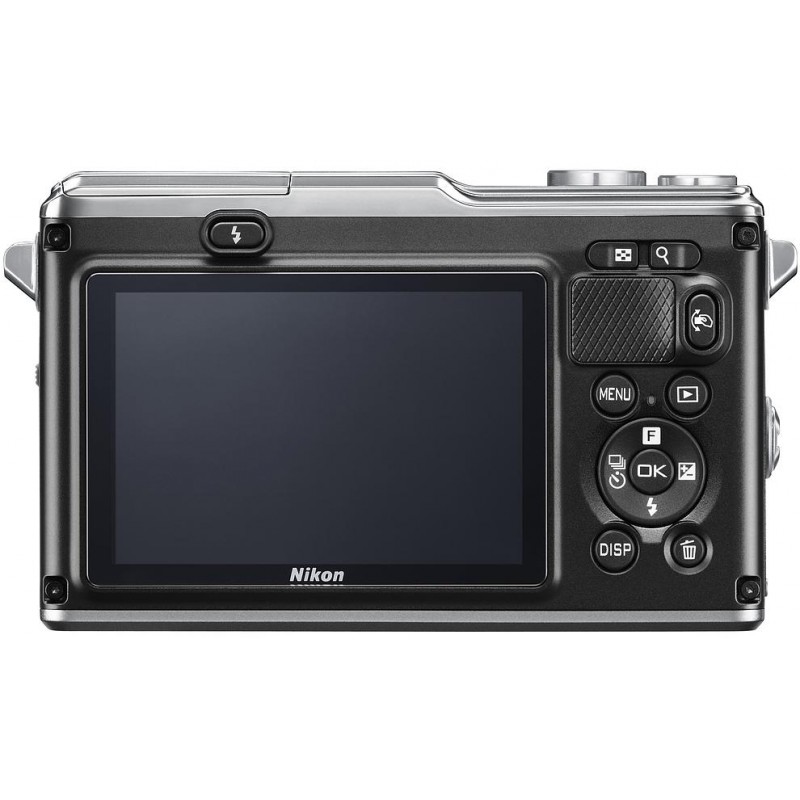

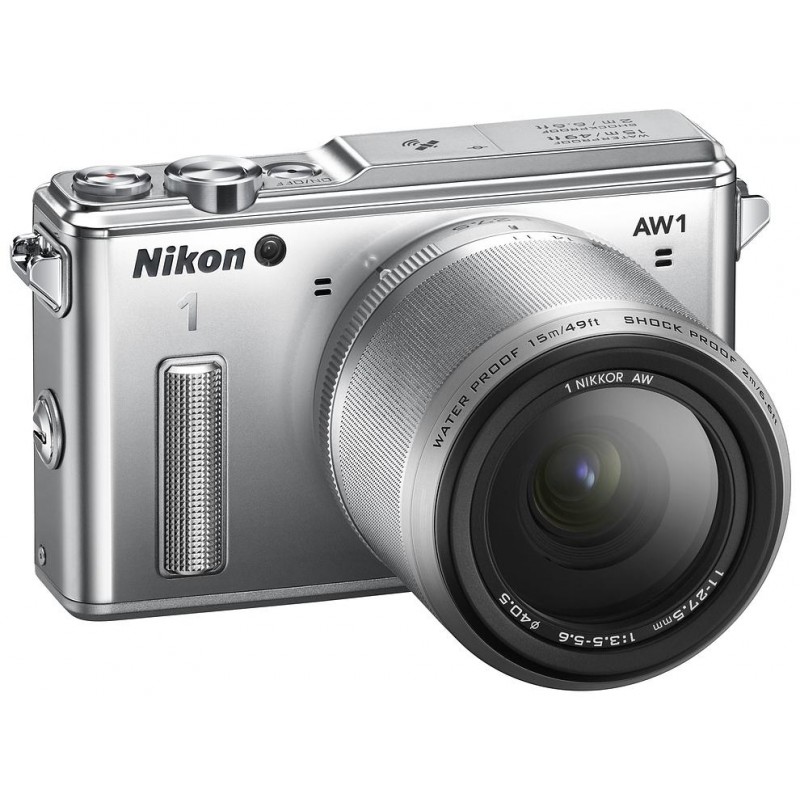

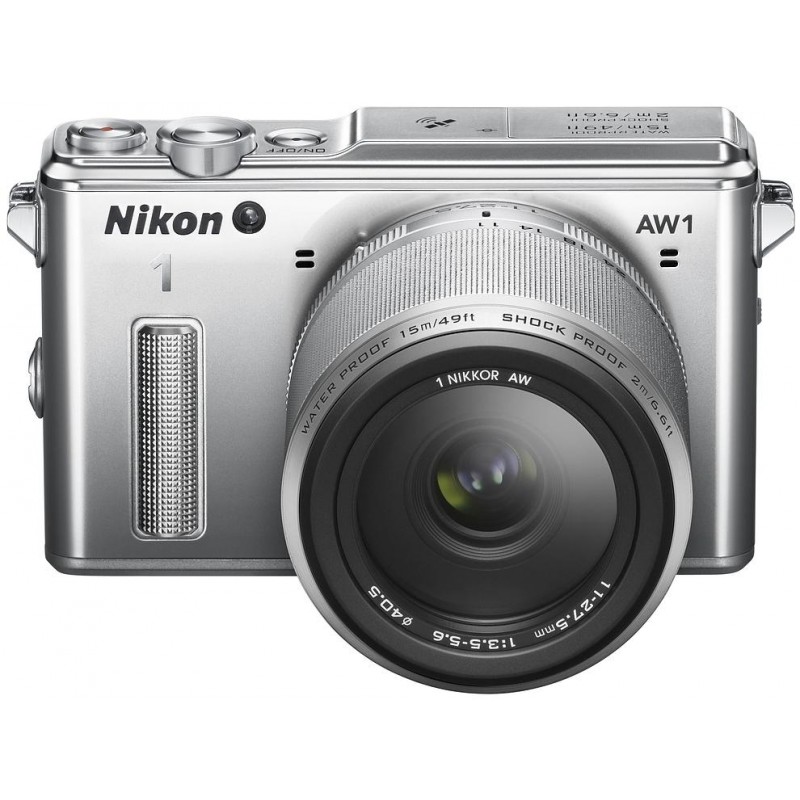

Nikon 1 AW1 + 11-27.5mm Kit, silver
Code: 34174
EAN: 018208936168
Manufacturer code: VVA202K001
Main info
14.2 megapixel Nikon CX CMOS sensor, EXPEED 3A processor, hybrid autofocus, RAW shooting, manual modes, Full HD video, HDMI, GPS, weatherproof bodyProduct has been archived

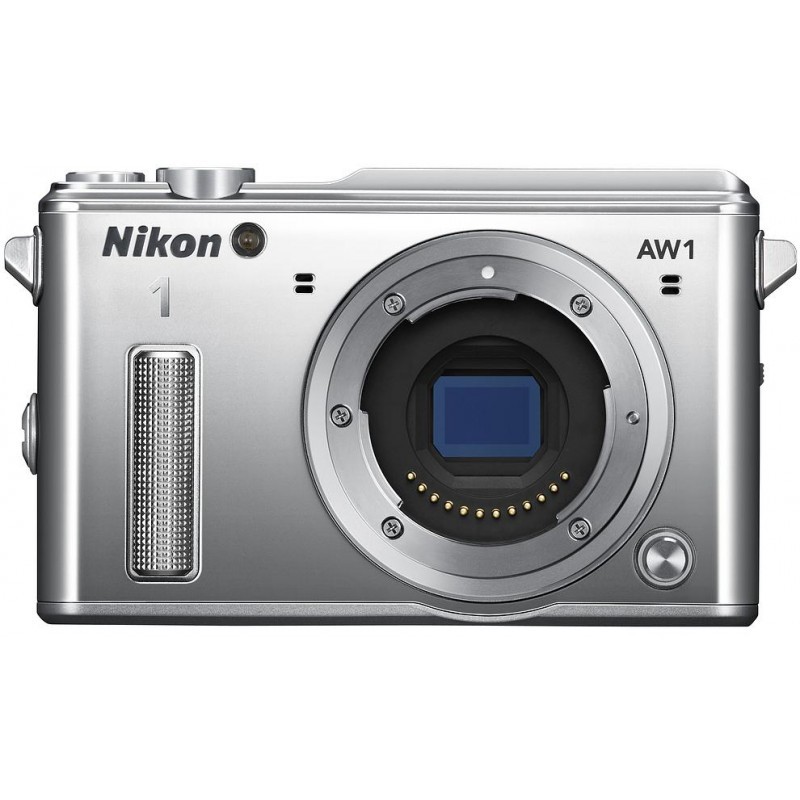

Nikon 1 AW1 body, silver
+ 1 NIKKOR AW 11-27.5mm f/3.5-5.6 waterproof zoom lens, silver
Life doesn’t have a replay button. You need a camera that can keep up.
+ 1 NIKKOR AW 11-27.5mm f/3.5-5.6 waterproof zoom lens, silver
Life doesn’t have a replay button. You need a camera that can keep up.
Waterproof, shockproof, and freeze-proof, the amazingly fast Nikon 1 AW1 always delivers. Whether you’re on the ski slopes, out on a yacht, or enjoying an adventure safari, this system camera is protected from accidents and the elements. And thanks to the minimalist design, you won’t look out of place at a chic city event either.
From epic adventures to everyday action, this strong and handsome system camera doesn’t miss the moments you’ll never want to forget.
Sensor
Effective megapixels
14.2
Sensor type
CMOS
Sensor size
13.2 × 8.8 mm
Nikon CX
Nikon CX
Full frame
No
Crop factor
2.7×
Aspect ratio
3 : 2
16:9 aspect ratio available
16:9 aspect ratio available
Largest image size
4608 × 3072
Smallest image size
2304 × 1536
Imaging processor
EXPEED 3A
ISO
100 – 6400
1 EV increments
1 EV increments
Filters
Primary color filter
Low pass filter
Low pass filter
Dust removal
No
Colour space
sRGB
Bayonet
Camera body mount
Nikon 1 waterproof mount
Compatible lenses
Nikon 1 AW lenses
Nikon 1 lenses
Nikon F lenses (with FT1 adapter)
Nikon 1 lenses
Nikon F lenses (with FT1 adapter)
Image stabiliser
Image stabiliser
None
Uses in-lens stabilization
Uses in-lens stabilization
Focusing
Focusing sensor
Hybrid autofocus
TTL phase detection
TTL contrast-detection
TTL phase detection
TTL contrast-detection
Autofocus points
135 focus areas (single point AF mode)
Center 73 areas support phase-detection
Auto-area: 41 focus areas
Center 73 areas support phase-detection
Auto-area: 41 focus areas
Autofocus modes
Auto
Single
Continuous
Tracking
Manual
Single
Continuous
Tracking
Manual
Focus lock
Yes
Can be locked by pressing shutter-release button halfway
Can be locked by pressing shutter-release button halfway
Focus point selection
Auto
Spot
Subject tracking
Spot
Subject tracking
Autofocus micro adjustment
No
AF assist light
Yes
Exposure metering
Metering
TTL metering
Uses image sensor
Uses image sensor
Modes
Multi-segment (evaluative)
Center weighted average
Spot
Center weighted average
Spot
AE lock
Yes
Can be locked by pressing shutter-release button halfway
Can be locked by pressing shutter-release button halfway
Exposure compensation
±3 EV
1/3 EV increments
1/3 EV increments
Exposure bracketing
No
Shutter
Shutter
Electronic shutter
Shutter speed
1/16 000 – 30 sec
Bulb
1/3 EV increments
Bulb
1/3 EV increments
Shooting
Exposure modes
Auto
Scene
Program
Aperture priority
Shutter priority
Manual
Scene
Program
Aperture priority
Shutter priority
Manual
Scene modes
7
Drive modes
Single
Continuous
Self-timer 2 sec
Self-timer 5 sec
Self-timer 10 sec
Bulb
Continuous
Self-timer 2 sec
Self-timer 5 sec
Self-timer 10 sec
Bulb
Digital filters
Yes
Still image continuous shooting
60 fps [Manual focusing]
15 fps [With autofocus]
15 fps [With autofocus]
JPEG+RAW
Yes
White balance
White balance modes
Auto
Daylight
Cloudy
Shade
Tungsten
Fluorescent
Flash
Underwater
Manual
Daylight
Cloudy
Shade
Tungsten
Fluorescent
Flash
Underwater
Manual
WB Bracketing
No
Movie recording
Video resolution
[FullHD] 1920 × 1080 50i
Other formats
[FullHD] 1920 × 1080 50p
[HD] 1280 × 720 50p
[HD] 1280 × 720 25p
[HD] 1280 × 720 50p
[HD] 1280 × 720 25p
Slow motion video
[VGA] 640 × 480 400p
[QVGA] 320 × 240 1200p
[QVGA] 320 × 240 1200p
Microphone
Integrated stereo microphone
File types
JPEG
EXIF 2.3
DCF
DPOF
PictBridge
DCF
DPOF
PictBridge
RAW
NEF
Compressed, 12 bit
Compressed, 12 bit
Movie format
MOV (Video: H.264/MPEG-4 AVC; Audio: AAC stereo)
Viewfinder
Viewfinder type
None
LCD monitor
Display type
TFT LCD
Display size (inches)
3.0
Screen dots
921 000
Touch screen
No
Coverage
100%
Adjustments
Brightness
Live View
Yes
Storage
Memory card slots
1
Memory card type
SD
SDHC
SDXC
SDHC
SDXC
Flash
Flash type
Built-in flash
Guide number
5 (m, ISO 100)
Flash modes
Auto
Fill flash
Flash off
Slow sync
Rear curtain sync
Red-eye reduction
Fill flash
Flash off
Slow sync
Rear curtain sync
Red-eye reduction
Flash exposure compensation
-3 – +1 EV
1/3 EV increments
1/3 EV increments
X-Sync
1/60 sec
Interface
USB
USB 2.0
Video
miniHDMI (Type C)
Remote control
Nikon wireless remote control ML-L3
Wireless
With optional WU-1b Mobile Adapter
Features
GPS
GPS and GLONASS
Electronic level
Yes
Panorama
Yes
HDR
Yes
Time lapse
Yes
Power source
Battery
EN-EL20 lithium battery
Battery life
220 shots (CIPA)
External power source
EH-5b AC adapter, requires EP-5B power supply connector
Body
Materials
Aluminium alloy body
Weather sealing
Waterproof (15 meters up to 60 minutes)
Shockproof up to 2 meters
Freeze proof (up to -10 °C)
Dustproof
Shockproof up to 2 meters
Freeze proof (up to -10 °C)
Dustproof
Color
Silver
Height (mm)
71.5
Width (mm)
113.5
Depth (mm)
37
Weight (body only)
313 g
Supplied lens
1 NIKKOR AW 11-27,5mm f/3.5-5.6
Normal zoom lens
Normal zoom lens
Package contents
Lithium battery EN-EL20
Battery charger MH-27
Body mount cover
O-ring protector PA-N1000
O-ring WP-O2000
Shoulder strap
Silicon grease WP-G1000
USB cable
ViewNX 2 software CD-ROM
Battery charger MH-27
Body mount cover
O-ring protector PA-N1000
O-ring WP-O2000
Shoulder strap
Silicon grease WP-G1000
USB cable
ViewNX 2 software CD-ROM
Product codes
EAN
018208936168
Manufacturer code
VVA202K001
