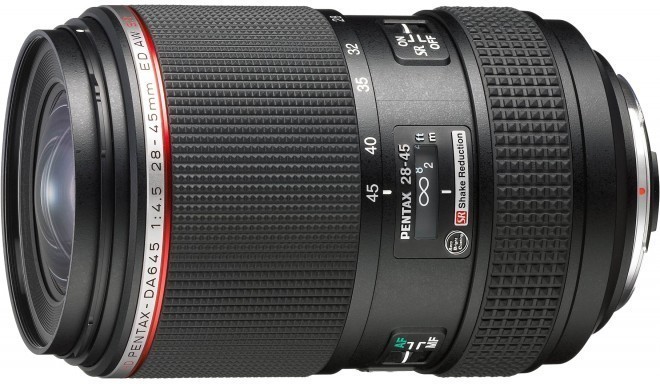

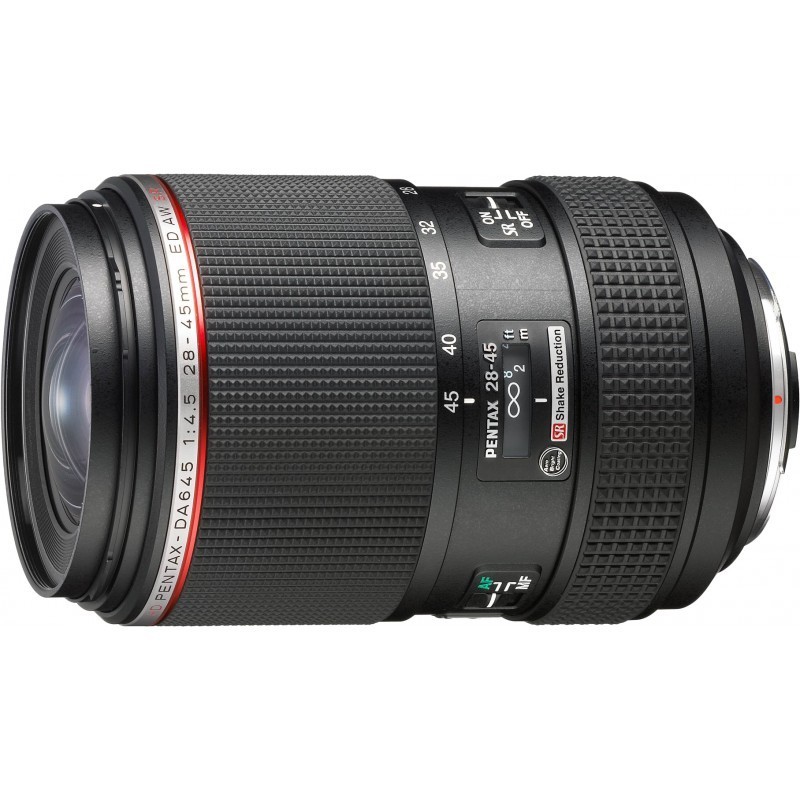

HD Pentax DA 645 28-45mm f/4.5 ED AW SR
Code: 38644
EAN: 027075219861
Manufacturer code: 26390
Main info
- 28–45 mm ultra wide angle zoom lens
- Fast - maximum aperture of f/4.5
- High performance 3.5-stop SR mechanism
- Dustproof, weather-resistant construction
- For Pentax 645 series medium format cameras
Product has been archived
- Ultra-wide angle zoom lens with 1.6× zoom ratio
- 2 Extra low-dispersion ED lens elements
- 2 AL Aspherical elements
- HD Coating and Aero Bright Coating
- Lens-installed SR mechanism
- Dependable weather-resistant construction
- Smooth, quiet autofocus operation driven by a built-in DC motor
This is an ultra wide-angle zoom lens designed specifically for degital use, featuring the best of PENTAX lens technology
Providing focal lengths from 22mm to 35.5mm in the 35mm format, this is exclusively designed for digital imaging. Its image circle is optimized for an image sensor of the new PENTAX 645Z medium-format digital SLR camera, and a number of PENTAX-developed technologies including advanced lens coatings are incorporated, to deliver super-high-resolution images made possible only by medium-format digital SLR cameras.
First ultra-wide-angle zoom lens for use with medium-format digital SLR cameras
This zoom lens offers a zoom ratio of approximately 1.6 times to cover ultra-wide-angle to wide-angle ranges (for focal lengths of 22mm to 35.5mm in the 35mm, when mounted on a PENTAX 645Z or 645D camera body). With visual effects unique to wide-angle lenses, including exaggerated perspective and expanded depth-of-field, this lens can be used for a wide variety of scenes and subjects, such as sweeping landscapes and cramped rooms, adding more versatility to advanced medium-format digital SLR photography.
State-of-the-art optical design to optimize super-high-resolution images
Designed as the HD PENTAX DA-series model in the PENTAX 645 lens series, this lens's image circle is optimized for the image sensor of the PENTAX 645Z camera body. Its optics consists of 17 elements in 12 groups, including two high-performance aspherical elements and two ED (Extra-low Dispersion) elements, to enhance image resolution and brightness at edges, while minimizing various aberrations. Coupled with innovative lens coatings and an anti-reflective coating applied to the interior of the lens barrel, this lens is designed to bring out the best performance of medium-format digital SLR cameras.
HD Coating and Aero Bright Coating to optimize light transmittance and minimize reflection
This lens is treated with the high-grade, multi-layer HD Coating to optimize light transmittance and minimize reflection. This coating delivers sharp, clear images free of flare and ghost images, even under demanding lighting conditions such as backlight. By coupling this coating with the PENTAX-exclusive, high-grade Aero Bright Coating, this lens is designed to assure exceptionally high light transmittance and super-low refraction.
Technical data
Format compatibility
Pentax 645 series DSLRs
Lens mount
PENTAX 645 AF2
Zoom / fix
Zoom lens
Lens type
Wide angle zoom
Focal length
28 – 45 mm
Focal length (35mm camera equivalent)
22 – 35.5 mm
Maximum aperture
f/4.5
Minimum aperture
f/32
Optical construction
17 elements in 12 groups
Focusing
Autofocus
Manual focus
Manual focus
AF motor
DC (Direct Current) motor
Full mechanical manual focus override
Yes
Image stabiliser
Yes
Image stabilizer design
Pentax SR (Shake Reduction)
Stabilizer performance
3.5 stops
Minimum focus distance
40 cm
No. of diaphragm blades
9
Maximum reproduction ratio
0.21×
General
Diameter
99 mm
Length
151.5 mm
Weight
1470 g
Filter thread
82 mm
Weather sealing
Dustproof and weatherproof
Package contents
Lens
Front lens cap
Rear lens cap
Lens hood
Soft case
Front lens cap
Rear lens cap
Lens hood
Soft case
Product codes
EAN
027075219861
0027075219861
4549212219863
0027075219861
4549212219863
Manufacturer code
26390
